Digitale rontgen/Kodak/Trophy/Filemaker


Steven

Question

Posted

Beste,



heeft er iemand ervaring met het koppelen van andere programma's aan filemaker ?



Ik heb een programma en toestel om digitale Rontgenfoto's te nemen. Bij iedere patient dient de naam ingegeven te worden, daarna kan men foto's nemen. Graag had ik dit programma gekoppeld aan mijn filemaker DB en met één knop het Rontgenprogramma oproepen om een nieuwe rontgenopname te maken of een oude rontgenopname op te zoeken.

Van de hard-en software fabrikant (Kodak, Trophy) kreeg ik volgende informatie (hieronder), maar daar raak ik niets wijzer uit.

Is er iemand die mij op het goede spoor kan Leiden ?



Alvast bedankt



Steven Dewaele

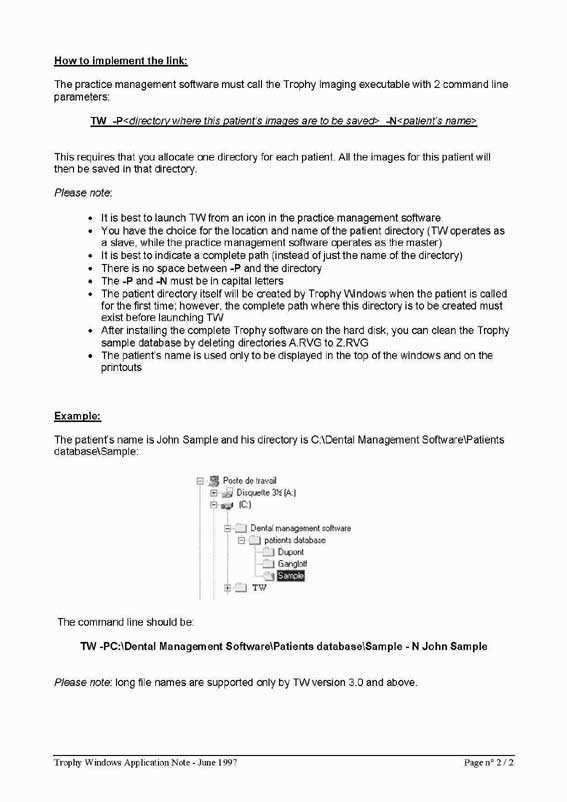

Trophy Windows Application Note - June 1997 Page n° 2 / 2

How to implement the link:

The practice management software must call the Trophy Imaging executable with 2 command line

parameters:

TW -P -N

This requires that you allocate one directory for each patient. All the images for this patient will

then be saved in that directory.

Please note:

• It is best to launch TW from an icon in the practice management software

• You have the choice for the location and name of the patient directory (TW operates as

a slave, while the practice management software operates as the master)

• It is best to indicate a complete path (instead of just the name of the directory)

• There is no space between -P and the directory

• The -P and -N must be in capital letters

• The patient directory itself will be created by Trophy Windows when the patient is called

for the first time; however, the complete path where this directory is to be created must

exist before launching TW

• After installing the complete Trophy software on the hard disk, you can clean the Trophy

sample database by deleting directories A.RVG to Z.RVG

• The patient’s name is used only to be displayed in the top of the windows and on the

printouts

Example:

The patient’s name is John Sample and his directory is C:\Dental Management Software\Patients

database\Sample:

The command line should be:

TW -PC:\Dental Management Software\Patients database\Sample - N John Sample

Please note: long file names are supported only by TW version 3.0 and above.

2 answers to this question

Recommended Posts

  • 0
Posted
Kan je niet verder met de Send Message scriptstap?





Ja, hiermee kan ik reeds het programma openen.



nu nog zoeken hoe ik automatisch een nieuw record aanmaak of hoe ik foto's opzoek in die KodakTrophy software vanuit Filemaker,





Bedankt
